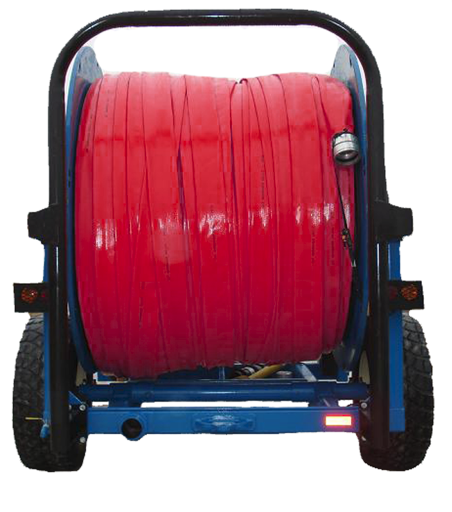

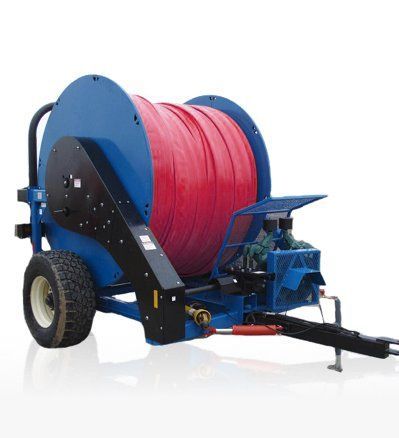

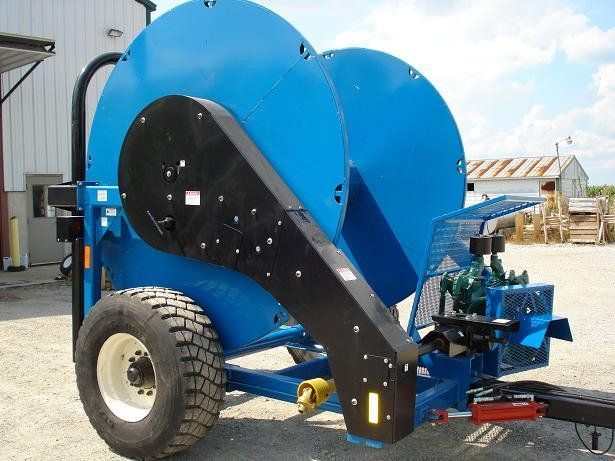

LARGE SINGLE AXLE HOSE REEL
Large Single Axle Hose Reel Features
We offer various sizes of hose reels to properly handle high pressure lay flat hoses. Our equipment allows for the fastest way to deploy and retrieve the hose, allowing operations to run much faster and with more efficiency.
Open drum hose reels. 3 point hitch, single axle, or tandem axle. Several sizes available. Can hold from 3 to 10 hoses. Over 1 mile of hose all on 1 reel. Only one person required to layout and pick up hose.
- Holds 6,600 ft. of 6” high pressure lay flat hose
- (2) large 445/65/R22.5 tires
- 3 position gearbox
- #80 double chain drive

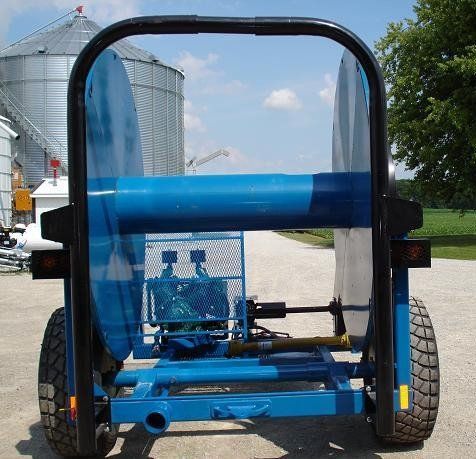

- Rear arch hose protector bar

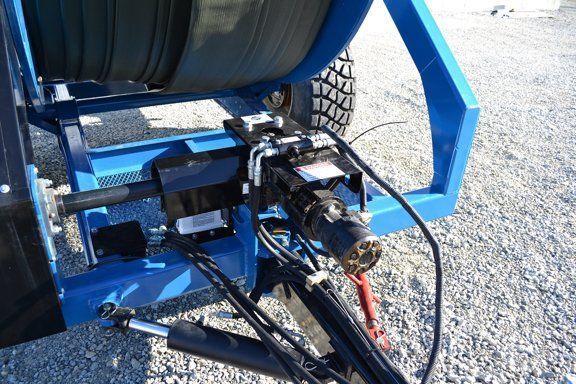

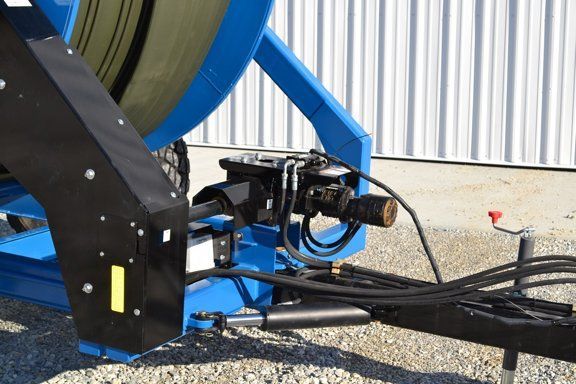

- Hydraulic hitch
- Tapered drum side end shields
- Large 3” pillow block main drum bearings

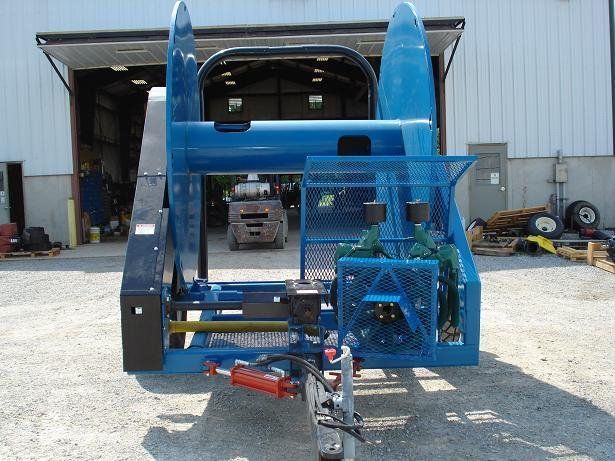

- Purge compressor with purge ball launcher mounted on reel (optional)
