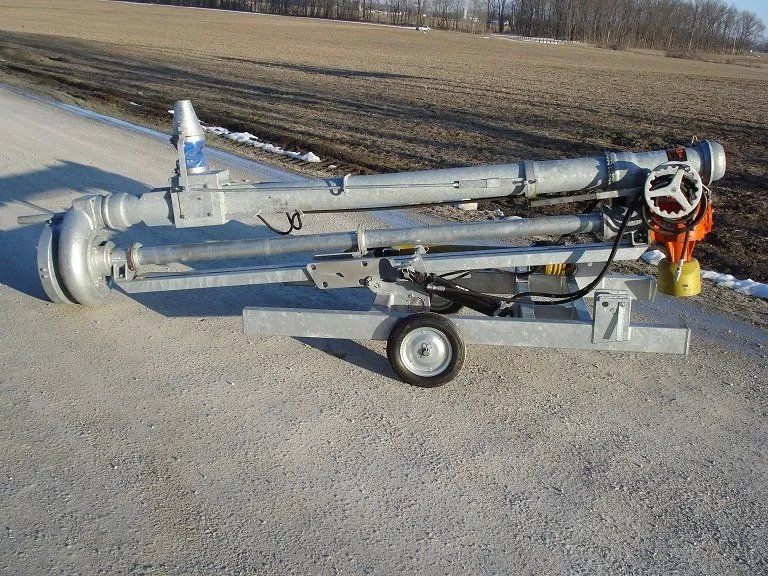

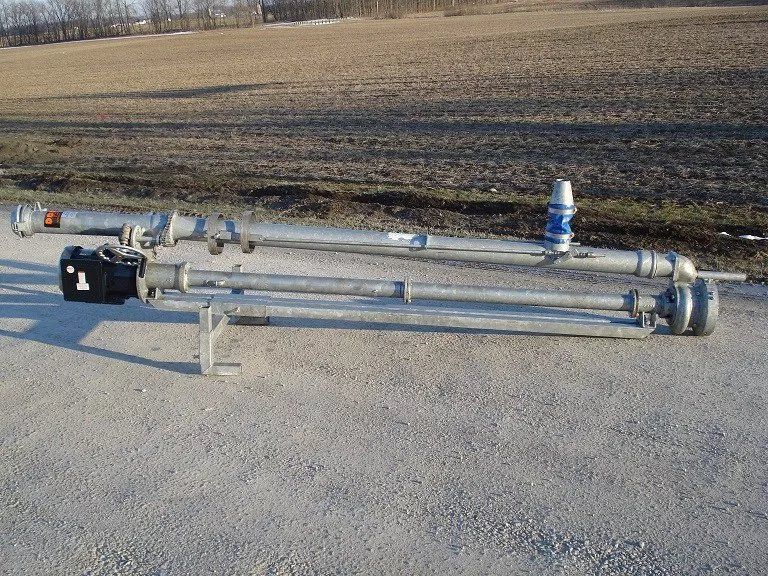

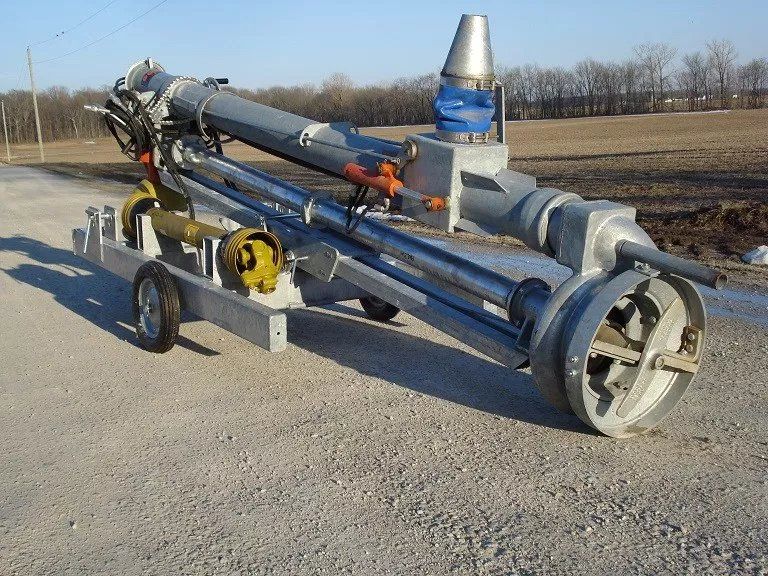

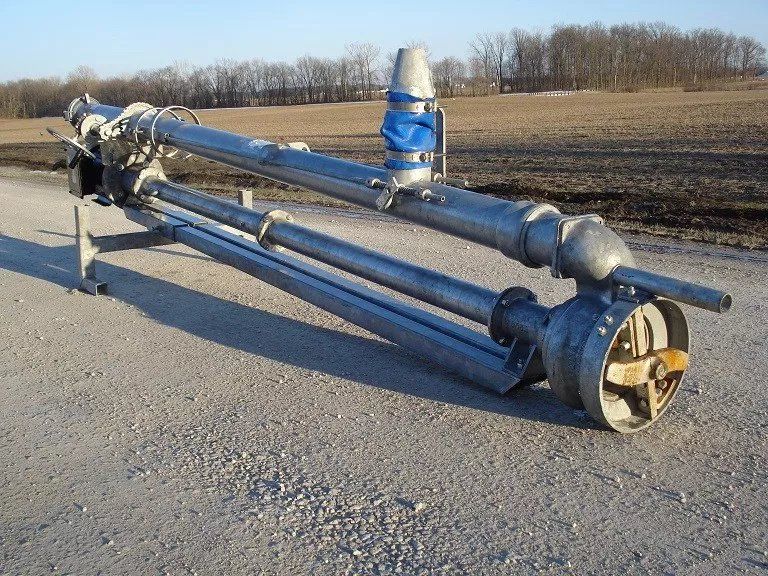

DODA VERTICAL CHOPPER PUMP

Doda Vertical Chopper Pump Features
  • Hot dipped galvanized nodular cast iron or AISI 304 stainless steel
  • Oil bath driveline with separate pump housing stainless steel shaft
  • Two piece tungsten carbide seal system
  • Agitation nozzle with 320 degree horizontal and 90 degree vertical movement
  • Patented chopping system with two static blades and one rotating chopper blade
  • High speed impeller with adjustable pressure plate for secondary chopping
  • Nodular cast iron housing, no welded components with unique volute design
  • Electric, PTO and models with additional propeller agitator are available
  • Selection of mounting brackets and undercarriages for varying applications
Advantages
  • Rotating chopping feature and adjustable pressure plate assures proper conditioning
  • The unique pump housing and volute design accelerates product moving through the housing and prevent clogging
  • Operates close to best efficiency point with minimal shaft deflection and increased performance of the mechanical seals and pump bearings
