NUHN HEADER SERIES LAGOON PUMP
Nuhn Header Series Lagoon Pump Features
Housing
- Triple port design - Having the liquid leave the housing in three locations allows for the liquid to get in and out of the housing at a high rate.
- This also uses the input power very efficiently as it is not wasted by moving liquid around in the housing
- Allows for a narrow, large diameter fan that takes less hp, increases liquid velocity and results in high volume
- Smooth, long radius pipes direct the liquid out of the housing
- Lofted housing with tapered fan - The housing back plate is formed to allow the liquid to be directed upwards with the tapered fan, rather than just outwards like traditional manure pumps.
- This fan acts more like a boat impellor, lifting the liquid vertically while still in the housing rather than just being pushed horizontally
Drive Line
- 1 3/4″ shaft with 3.25″OD hardened steel drive shaft sections
- 10′ sections of connected with heavy duty 80 series universal joint
- Completely enclosed drive assembly with G-Force seal and bearing unit on both ends
- Large clean-out doors for easy access to bearings

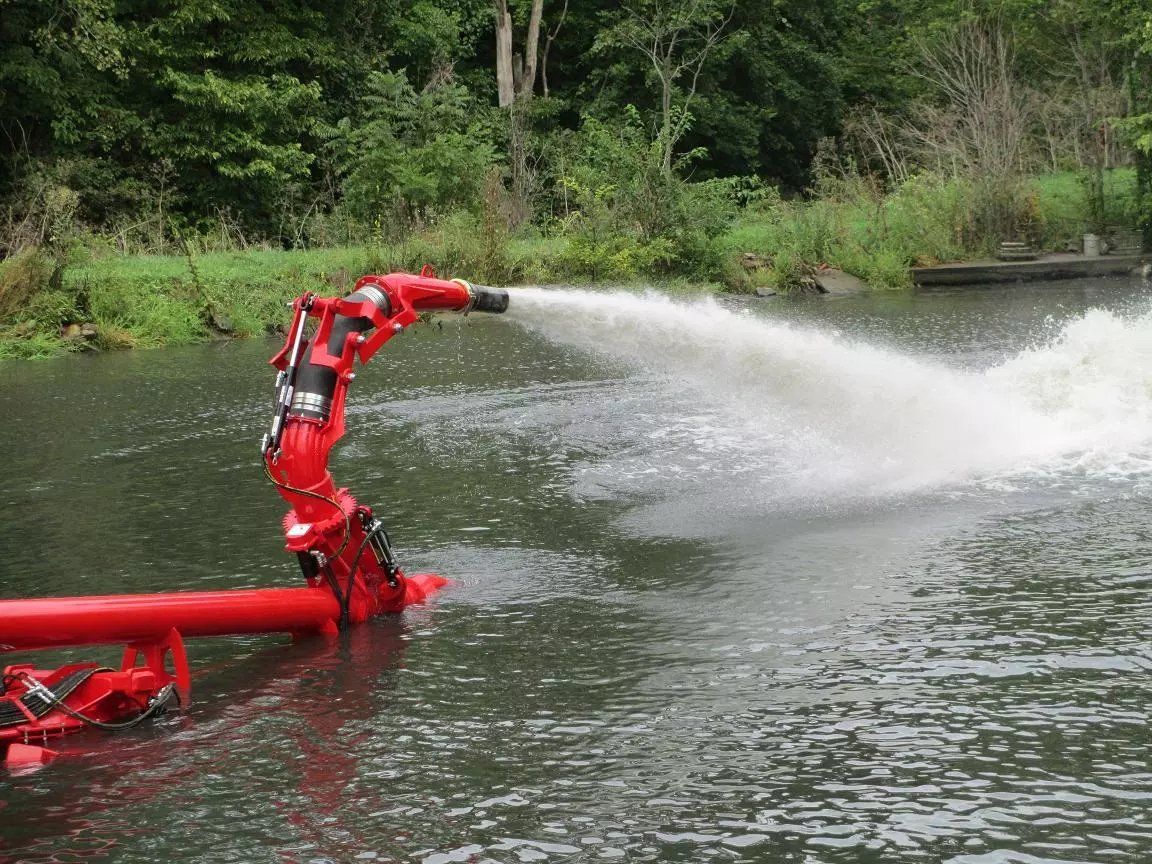

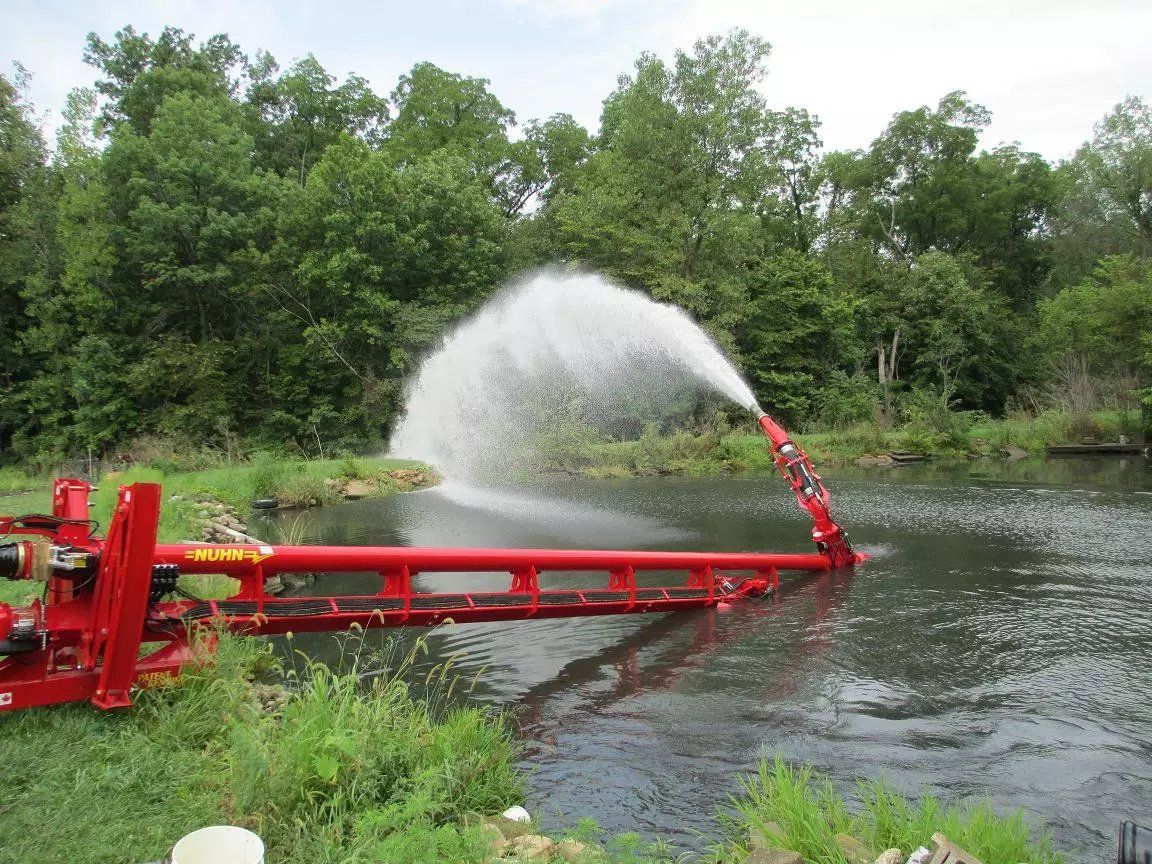

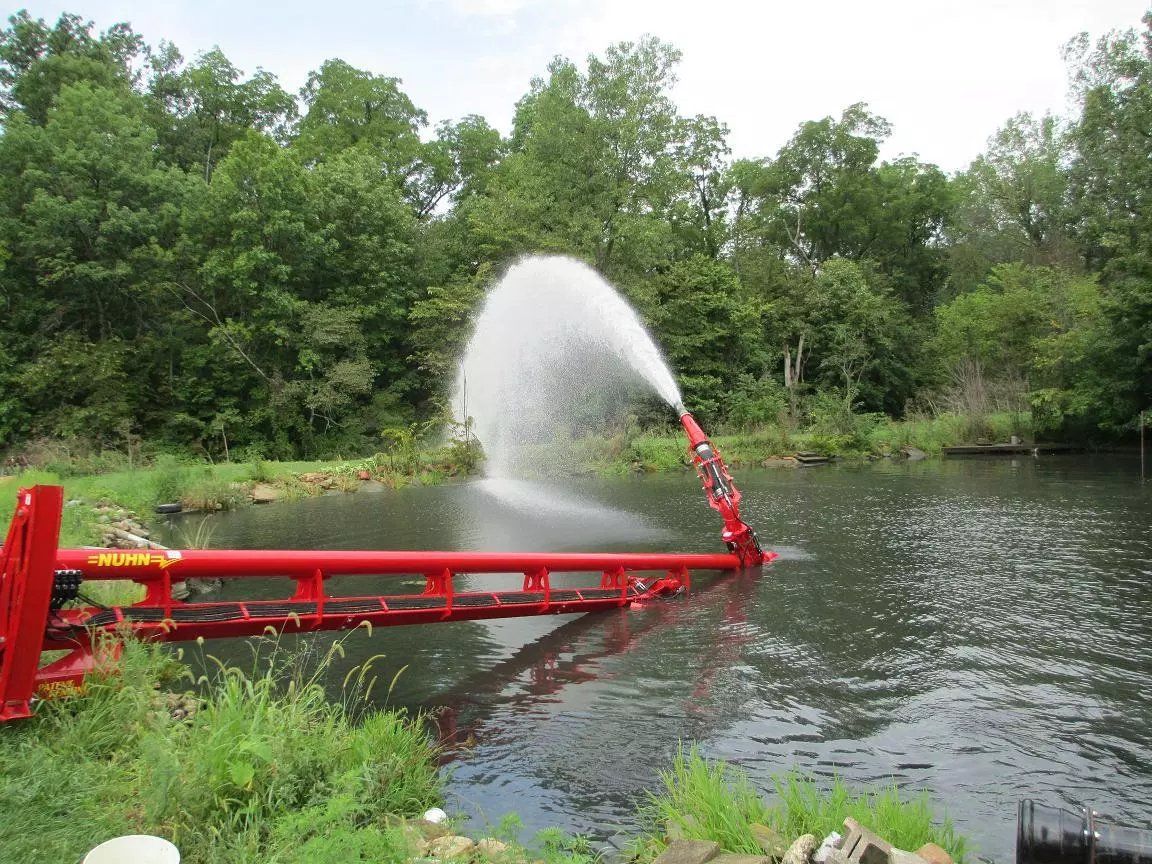

Agitator
- 4″ nozzle to create 45psi of pressure with 4000GPM volume
- End noozle rotates 360°
- Main rotation pipe is able to rotate 300°
Additional Standard Features
- Remote control with 300+ft range
- Spring loaded grease flush system
- Strong truss brace frame design
- Large stroke lift cylinders tor educe strain on undercarriage
- 9’6″ wide undercarriage
- Stainless steel knife valves
- Heavy commercial outrigger legs
- Extend to 14′ wide and lower an additional 3’6″
Options
- Wall walker
- Steering
*Figures will change depending on the consistency of liquid, and the pumping distance and height
