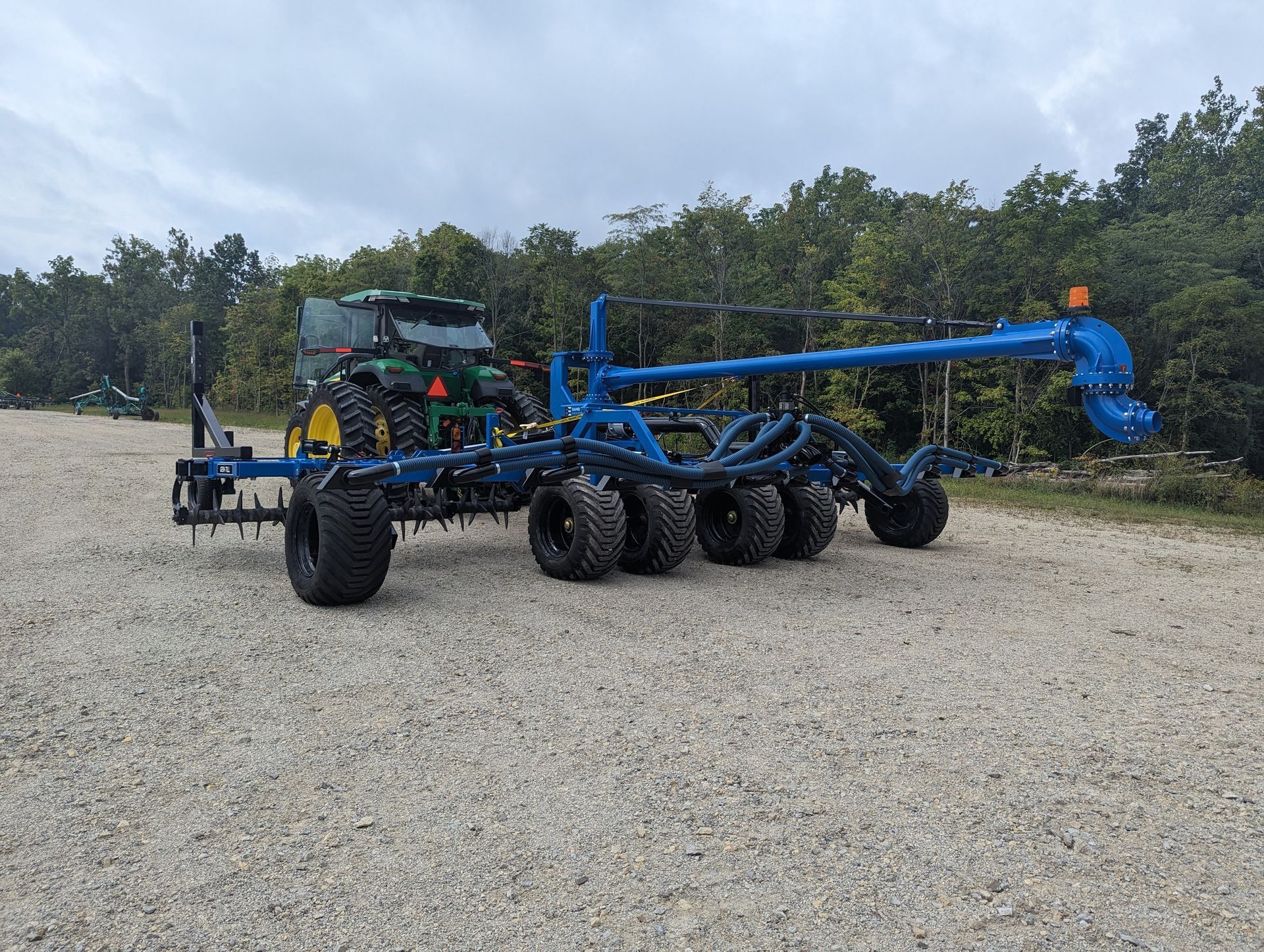

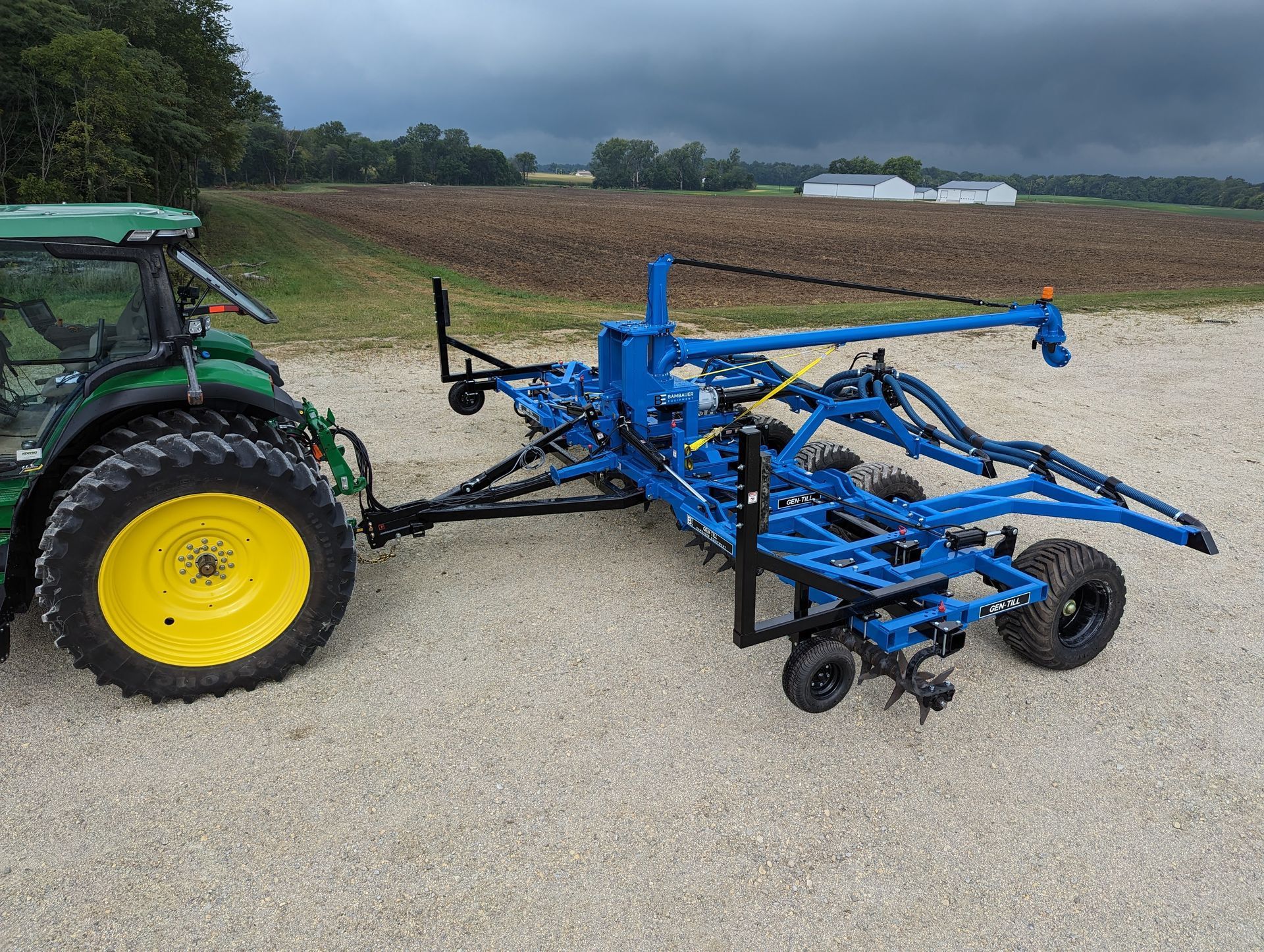

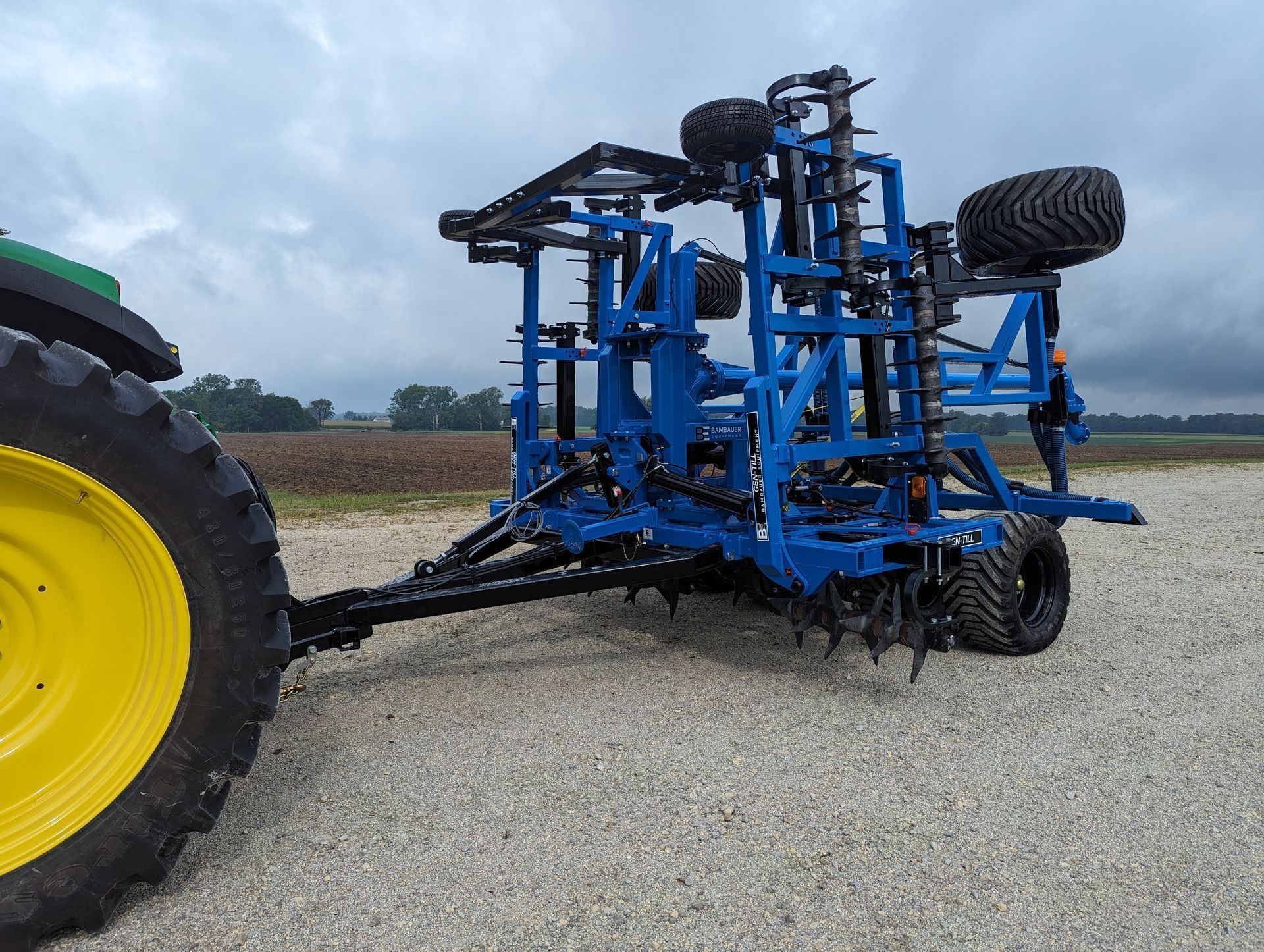

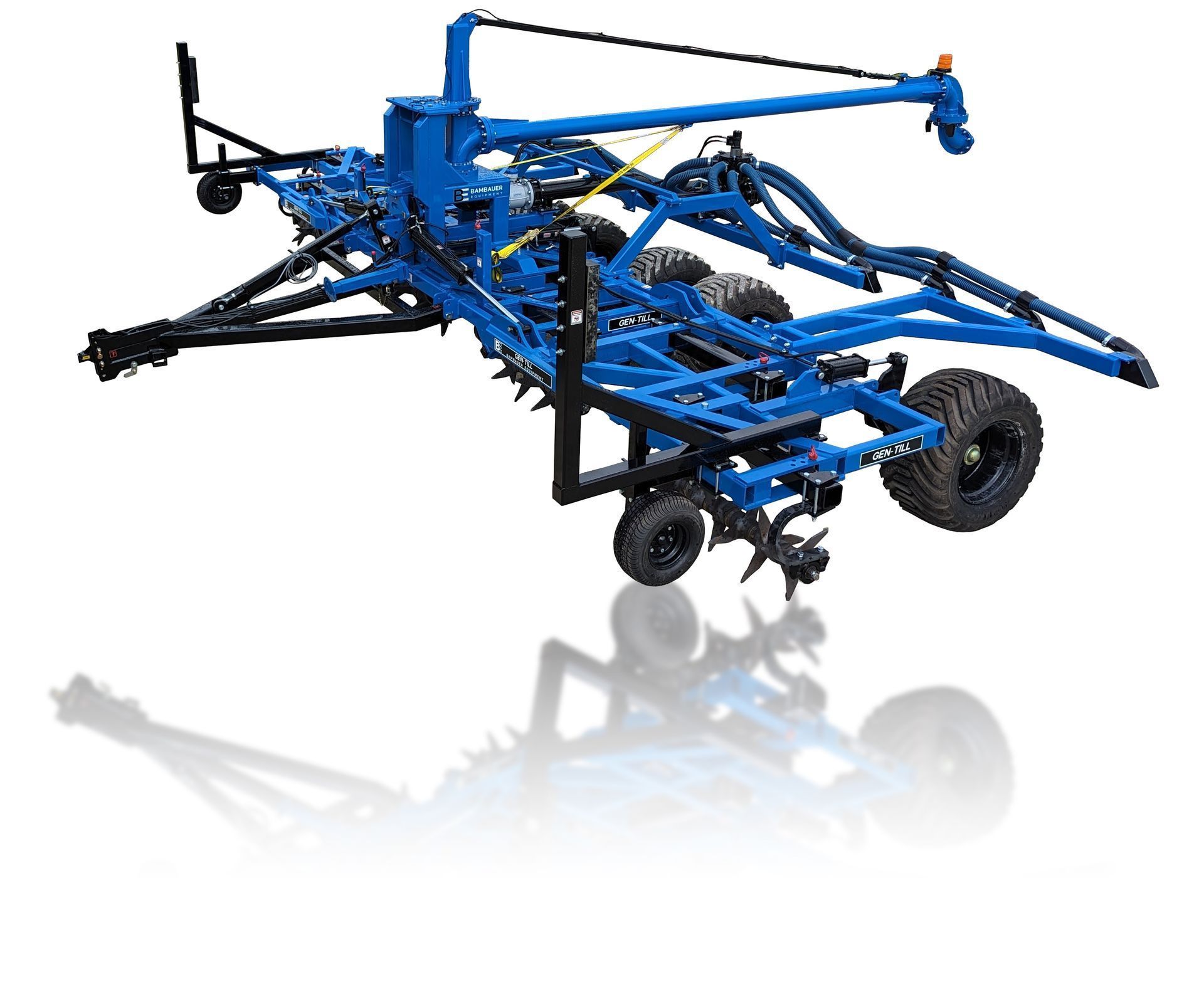

GENTILL PULL TYPE AERATOR TOOL BAR
Gentill Pull Type Aerator Tool Bar Features
This toolbar is designed for soil fracturing to 8″ deep. This allows even absorption of the liquid manure into the top soil profile. Also designed for easy turning on field ends with no backing up necessary. Double pivot prevents stress on drag through the entire turn. 22.5′ operating width and narrow transport width. Other sizes are available. Toolbar features, cast ductile iron tines, heavy duty C flex with adjustable gangs, hydraulic folding wings, self leveling frame hitch design, hydraulic driven chopper manifolds for even distribution, 7.5″ nozzle spacings, and flow meter options available.
Features
- 3 point hitch or pull type units available
- Various widths
- Bolt down 6” swing arm tower assembly
- 6” double pivot and swivel
- Hydraulic operated 6” valves
- Hydraulic folding wings
- Purge ball bypass with adjustable spray deflector
- Manifold system with rear splash plate nozzles
- Large super single rear wheels
- Heavy duty frame with self-leveling hitch
- C-flex bearing design
- Adjustable gangs
- Cast ductile iron tines, heat treated
- Can fracture and loosen soil up to 8 1/2” depth
- 6” flow meter
30' Pulltype
- 6" or 8" Swing arm dual pivot
- Hydraulic folding wings
- Self leveling hitch frame
- 15' Transport width
- (6) Large floatation tires
- (12) Rear low spray hoods
30' 3 Point Narrow Fold - with 8" z pipe & 8" swivels
- (8) 6 ring Gen II roller assemblies, mounted to c-flex springs
- Each gang is adjustable to 0°, 2 1/2°, 5 °, 7 1/2° or 10° angles
- Hydraulic manifold distributor with stainless steel discharge ports
- 8" rear hydraulic valve
